5206C

5206C

108.00

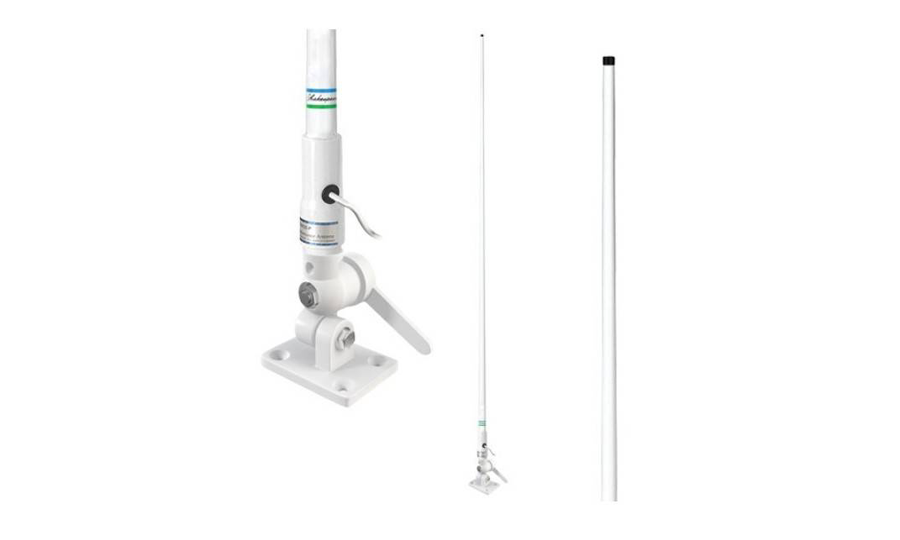

MARINE VHF ANTENNA, 8FT FIBRE-GLASS, 6DB, WITH 5M RG-58 CABLE & BRACKET

Quantity:

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.


  • Quality copper cable elements for good range and efficiency
  • Chrome-plated brass ferrule with standard 1"-14 thread
  • Includes 15' RG-58 cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount or use a Style 410-R Mounting Kit and a Style 4008 Extension Mast to form a 16' antenna system
  • Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
  • One section
Frequency:VHF Marine band
Bandwidth:3 MHz
SWR:1.5:1 @156.8 MHz
Impedance:(Ohms): 50
Gain:6 dB
Max Input (Watts):50
DC Ground:NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
Termination:RG-58
Height (feet):8
Polarization:Vertical
Radiation pattern:Omni-directional
