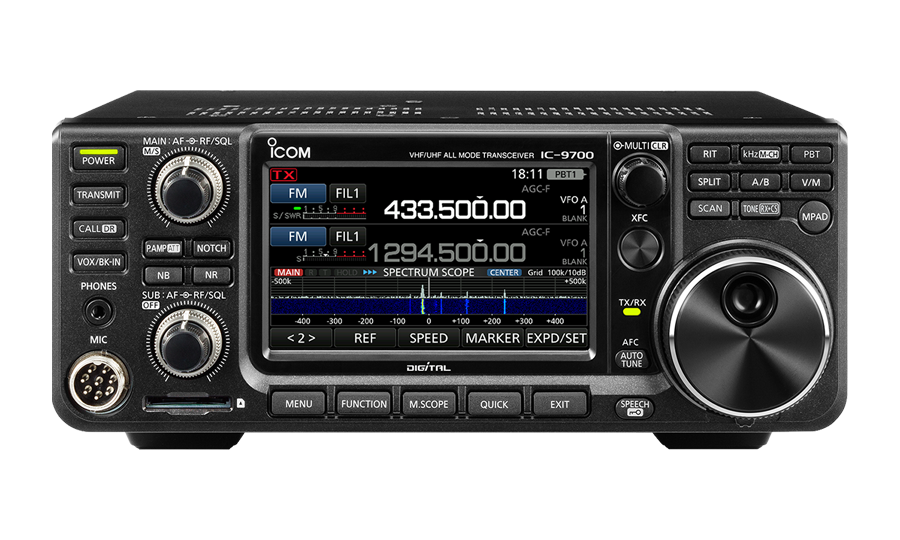

IC-9700

INQ

TRI-BAND TRANSCEIVER (2m, 70cm, 23cm)

144, 430 and 1200 MHz All Mode Transceiver including Satellite, DV and DD Modes

The IC-9700 is an all mode Tri-band transceiver, covering 2 m, 70 cm, and 23 cm. In addition to the traditional SSB, AM, FM, CW, and RTTY modes, the transceiver also incorporates D-STAR (Digital Smart Technology for Amateur Radio) DV and DD modes.

A full featured Satellite mode is built-in! There are three antenna connectors, one each for 144, 430 and 1200 MHz.

General

Frequency coverage		144.000–146.000, 430.000–440.000, 1240.000–1300.000 MHz
Frequency coverage		144.000–146.000, 430.000–434.000, 435.000–438.000, 1240.000–1245.000, 1270.000–1298.000 MHz
Mode		SSB, CW, RTTY, AM, FM, DV, DD
Number of memory channels		Simplex: 297 (99 channels × 3 bands), Program scan edges: 18 (6 channels × 3 bands) CALL channel: 6 (2 channels × 3 bands) Satellite: 99 DR function: 2500
Antenna connectors		144 MHz SO-239, 430/440, 1200 MHz Type-N
Power supply requirement		13.8 V DC ±15% (Negative ground)
Power consumption	Tx	Less than 18 A (High power)
Power consumption	Rx	1.2 A typical (Standby), Less than 1.8 A (Maximum audio)
Operating temperature range		−10 °C to +60 °C; 14 °F to 140 °F
Frequency stability		Less than ± 0.5 ppm (–10°C to +60°C; 14°F to 140°F)
Frequency resolution		1 Hz
Dimensions (W × H × D, projections not included)		240 × 94 × 238 mm, 9.4 × 3.7 × 9.4 in
Weight (approximately)		4.7 kg, 10.4 lb

Transmitter

Output power	SSB/CW/RTTY/FM/DV/DD 144 MHz: 0.5–100 W 430/440 MHz: 0.5–75 W 1200 MHz: 0.1–10 W AM 144 MHz: 0.125–25 W 430/440 MHz: 0.125–18.75 W 1200 MHz: 0.025–2.5 W
Modulation system	SSB: Digital PSN modulation AM: Digital Low Power modulation FM: Digital Reactance modulation DV/DD Digital GMSK modulation
Spurious emissions	Harmonics: 144 MHz: Less than –63 dB 430/440 MHz: Less than –61.8 dB 1200 MHz: Less than −53 dB Out-of-band emission: 144 MHz: Less than −60 dB 430/440 MHz: Less than −60 dB 1200 MHz: Less than −50 dB
Carrier suppression	More than 50 dB
Unwanted sideband	More than 50 dB
Microphone impedance	600Ω

Receiver

Receiver system	144, 430/440 MHz RF Direct Sampling 1200 MHz Down Conversion IF Sampling
Intermediate frequency (1200 MHz band)	311–371 MHz (EUR) 311–316, 341–369 MHz (ITR)
Sensitivity (Preamp: ON, Filter: SOFT)	SSB/CW (10dB S/N) Less than 0.11 μV AM (10dB S/N) Less than 1.0 μV FM (12 dB SINAD) Less than 0.18 μV DV (1% BER) (PN9) Less than 0.35 μV DD (1% BER) (PN9) (1200 MHz only) Less than 1.59 μV
Sensitivity for RED (Less than) Preamp ON SSB, AM, FM: at 12 dB SINAD	SSB/CW (2.4 kHz): 0.5 μV AM (4 kHz, 60% modulation): 1.0 μV FM (7 kHz, 60% modulation): 0.5 μV
Selectivity (Filter: SHARP)	SSB (BW=2.4 kHz) More than: 2.4 kHz/-3 dB Less than: 3.6 kHz/-60 dB CW (BW=500 Hz) More than: 500 Hz/-3 dB Less than: 700 Hz/-60 dB RTTY (BW=500 Hz) More than: 500 Hz/-3 dB Less than: 700 Hz/-60 dB AM (BW=6 kHz) More than: 6 kHz/-3 dB Less than: 15 kHz/-60 dB FM (BW=15 kHz) More than: 12 kHz/-6 dB Less than: 20 kHz/-60 dB DV (12.5 kHz spacing) Less than: -50 dB DD (300 kHz spacing) Less than: -40 dB
Spurious and image rejection ratio	144, 430/440MHz: SSB/CW: More than 70 dB AM/FM/DV: More than 60 dB 1200MHz: SSB/CW: More than 50 dB AM/FM/DV: More than 50 dB DD: More than 50 dB
Audio output power:	More than 2.0 W (1 kHz, 10% distortion) into an 8Ω load
