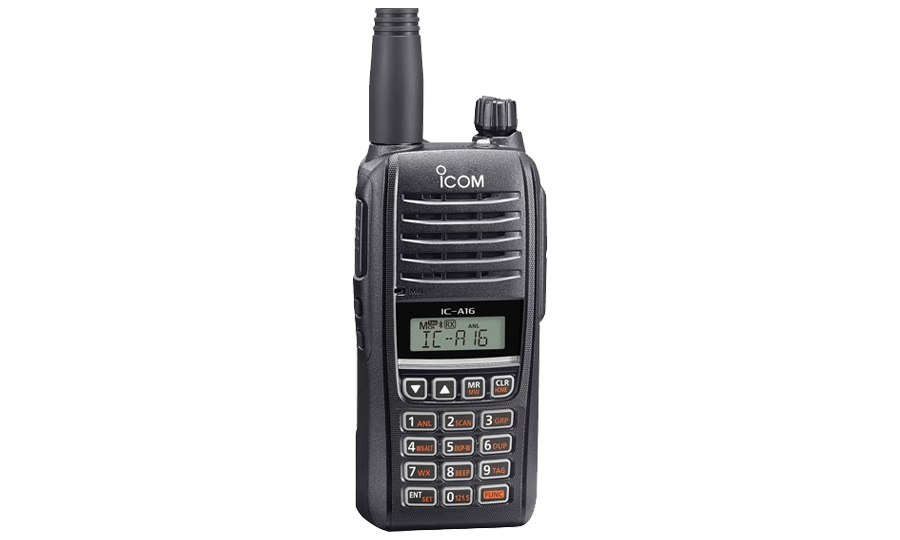

IC-A16

318.15

VHF AIR BAND TRANSCEIVER

Quantity:

8.33/25 kHz Ground to Air Radio with Class Leading 1500 mW Powerful Audio

8.33 kHz and 25 kHz Channel Spacing
1500 mW Loud Audio Provides Clear Communications
6 W (PEP) /1.8 W (Carrier) RF Output Power
Built-in Bluetooth® for Hands-Free Operation* (* Bluetooth operation depending on the transceiver version)
Large Capacity Battery Pack Provides 17 hours* of Long Battery Life (*With BP-280. Typical operation withTX : RX : Standby = 5:5:90. (Bluetooth OFF, backlight OFF)
Compact, Waterproof Durable Body (IP67/54 and MIL-STD-810-G)
LCD and Key Backlight for Night Time Operation
Compatible* with Third-Party Aviation Headsets (* Optional headset adapter OPC-2401 required.)

Frequency range			TX: 118.000–136.99166 MHz RX: 108.000–136.99166 MHz RX (Weather): 161.650–163.275 MHz
Number of memory channels			200 channels
Channel spacing			8.33 kHz/25 kHz
Type of emission			6K00A3E, 5K60A3E, 16K0G3E (Weather)
Power supply requirement			7.2 V DC
Current drain (approximate)	TX High		1.8 A
	RX	Stand-by	65 mA typical
	RX	Max. audio	650 mA
Antenna impedance			50 Ω (BNC type antenna connector)
Operating temperature range			–10˚C to +60˚C, 14˚F to +140˚F
Dimensions (W×H×D) (Projections not included)			52.2 × 111.8 × 34.1 mm, 2.1 × 4.4 × 1.3 in (with BP-280)
Weight (approximate)			257 g, 9.1 oz (with BP-280)

Intermediate frequencies		46.35 MHz (1st), 450 kHz (2nd)
Sensitivity		COM: Less than 0 dBμ (at 6 dB S/N) NAV: Less than 3 dBμ (at 6 dB S/N) Weather: Less than –8 dBμ (at 12 dB SINAD)
Squelch sensitivity (Threshold)		Less than 0 dBμ, Weather: Less than –5 dBμ
Spurious response		More than 60 dB, Weather: More than 30 dB
Hum and noise		More than 35 dB (at 30% modulation)
Audio output power	INT SP	1500 mW typical
Audio output power	EXT SP	More than 350 mW (AM 8 Ω 60% modulation at 10% distortion)
External speaker connector		3 conductor 3.5 (d) mm
