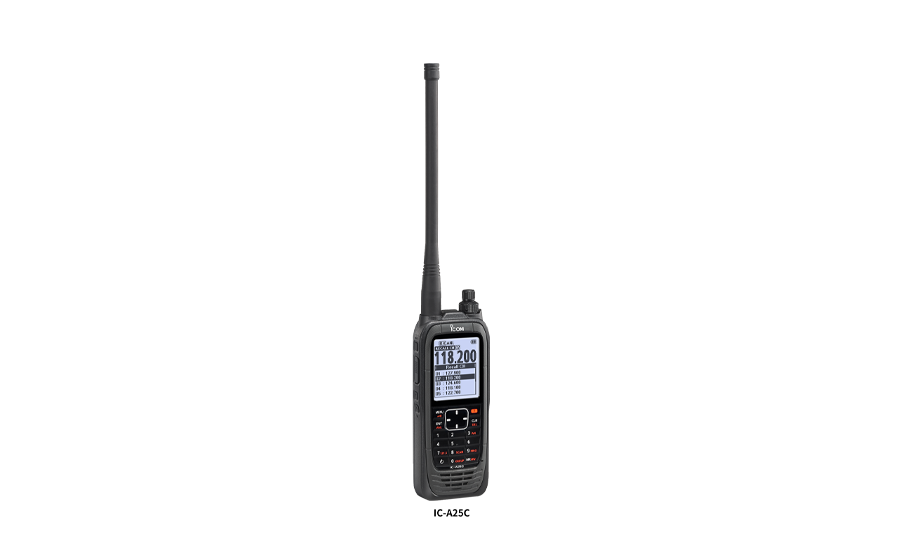

IC-A25C

465.15

AIRBAND HANDHELD (W/O NAV CHANNELS)

Quantity:

AIRBAND HANDHELD (W/O NAV CHANNELS)

	IC-A25C (COM channels)
Frequency range
TX	118.000–136.992 MHz
RX	118.000–136.992 MHz
RX (Weather)	161.650–163.275 MHz
Number of memory channels	300 channels/15 groups
Channel spacing	25/8.33 kHz
Type of emission	6K00A3E, 5K60A3E, 16K0G3E (Weather)
Power supply requirement	7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
Current drain (approximately)
Tx High	Less than 1.8 A
Rx Max. audio/Stand-by	Less than 500 mA/90 mA typ. (GPS, Bluetooth, Light: OFF)
Antenna impedance	50 Ω
Operating temperature range	−10 °C to +60 °C; −14 °F to +140 °F
Dimensions (W × H × D) (Projections not included)	58.9 × 148.4 × 31.8 mm; 2.3 × 5.8 × 1.3 in
Weight (approximately)	340 g; 12.0 oz (with BP-288)
Transmitter
Output power (at 7.2 V DC)	6.0/1.8 W typical (PEP/carrier)
Audio harmonic distortion	Less than 10% (at 60% modulation)
Hum and noise ratio	More than 35 dB
Spurious emissions	More than 46 dB (Except operating frequency ±62.5 kHz in 25 kHz channel spacing.) (Except operating frequency ±20.825 kHz in 8.33 kHz channel spacing.)
Frequency stability	±0.4 kHz
Receiver
Intermediate frequencies	46.35 MHz/450 kHz (1st/2nd)
Sensitivity
NAV/COM (6 dB S/N)	Less than 0 dBμ
WX (12 dB SINAD)	Less than -8 dBμ
Squelch sensitivity (at threshold)	Less than 0 dBμ (AM), Less than -5 dBμ (FM)
Spurious response	More than 60 dB (AM), More than 30 dB (FM)
Hum and noise	More than 35 dB (at 30% modulation)
Audio output power	More than 350 m (8 Ω load/60% modulation at 10% distortion)
Ext. speaker connector	3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω
