Built-in GPS with Simplified Waypoint NAV (for IC-A25N)
The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. In the Direct-To NAV, the IC-A25N directly guides you to a specified waypoint. In the Flight Plan NAV, the transceiver guides you to a sequential series of waypoints. Up to 10 flight plans and 300 waypoints can be memorized in the IC-A25N. Position information imported from an Android/iOS device* can be used as a waypoint.
* RS-AERO1A/RS-AERO1I required.
Flight Plans with Android™ /iOS™ App (for IC-A25N)
Using the RS-AERO1A (Android) or RS-AERO1I (iOS) application, you can make flight plans on an Android/iOS device and import the plan into the IC-A25N via Bluetooth. The following four functions are available:
1. Create a flight plan
You can make flight plans on an Android/iOS device by using preprogrammed waypoints.
2. Set Direct-To NAV
You can select a point on the map and export it to the IC-A25N for Direct-To NAV.
3. Display flight plan information
A flight plan in the IC-A25N can be displayed on an Android/iOS device.
4. Display waypoint information
Preprogrammed waypoints can be exported to an Android/iOS device and plotted on an map application.

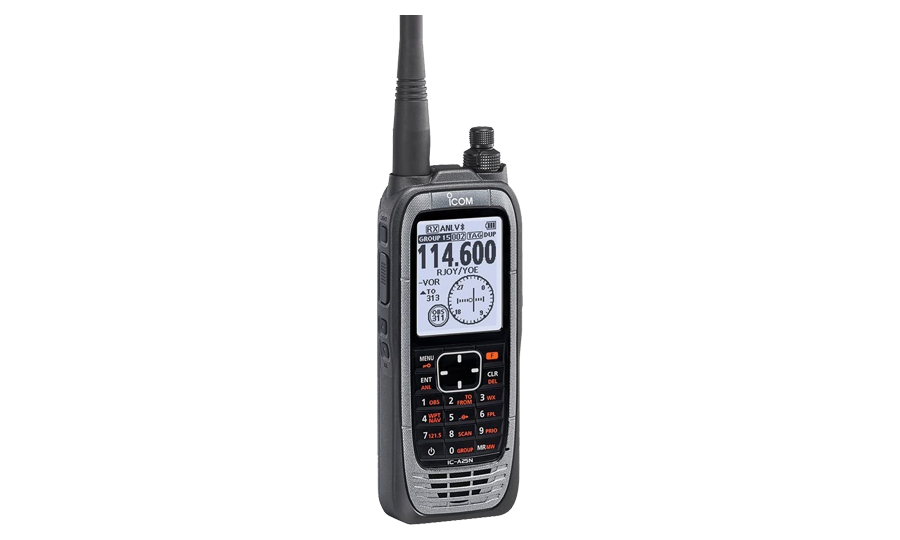

VOR Navigation Functions (for IC-A25N)
The CDI (Course Deviation Indicator) is detailed like a real VOR instrument, and displays any deviation from your course.
The OBS (Omni Bearing Selector) enables you to change course from the original flight plan.
The TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
The ABSS (Automatic Bearing Set System) function enables you to set the current course as a new course in two simple steps.
