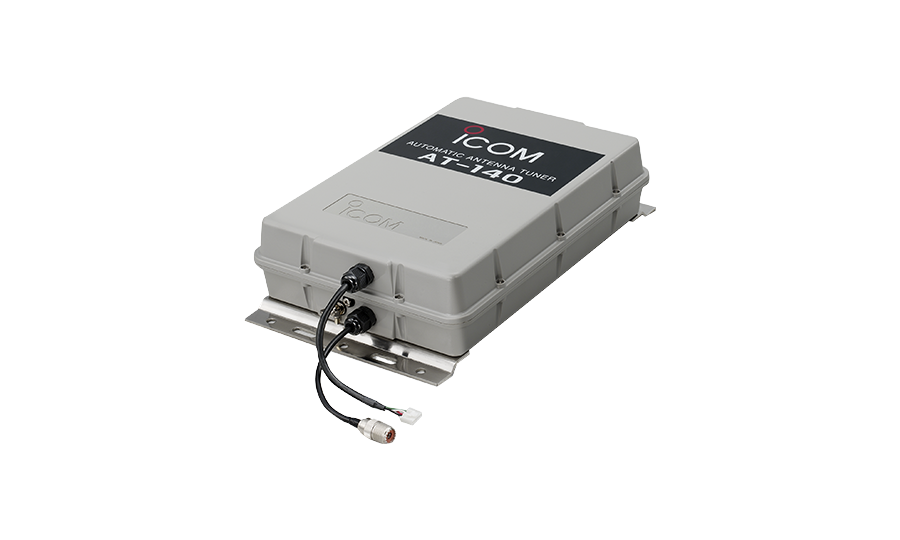

IC-AT140

561.75

ANTENNA TUNER

Quantity:

ANTENNA TUNER

For 1.6–30 MHz (with 7 m; 23.0 feet) or longer antenna element)

Nil

Frequency coverage	1.6 - 30 MHz (with 7m, 23ft or longer antenna element)
Power supply requirement	13.6 V DC (supplied from the HF transceiver)
Current drain	Maximum 2 A
Operating temperature range	–30°C to +60°C; –22˚F to +140˚F
Weight (approximately)	AT-130 2.5 kg; 5.5 lb
Antenna connector	SO-239 (50 Ω)
Maximum Input power	150 W (PEP) 100 W (continuous)
Automatic tuning time	Approximately 2 to 3 seconds (general condition) Maximum 15 seconds Approximately 1 second (re-tuning for a memorized frequency)
Automatic tuning accuracy	SWR 2.0:1 (after tuning, except for multiples of 1⁄2 λ)
