NX-1200 [N/D/A]

NX-1200 [N/D/A]

INQ

VHF HANDHELD TRANSCEIVER

NX-1000 SERIES
VHF HANDHELD TRANSCEIVER
N - NXDN
D - DMR
A - ANALOGUE FM

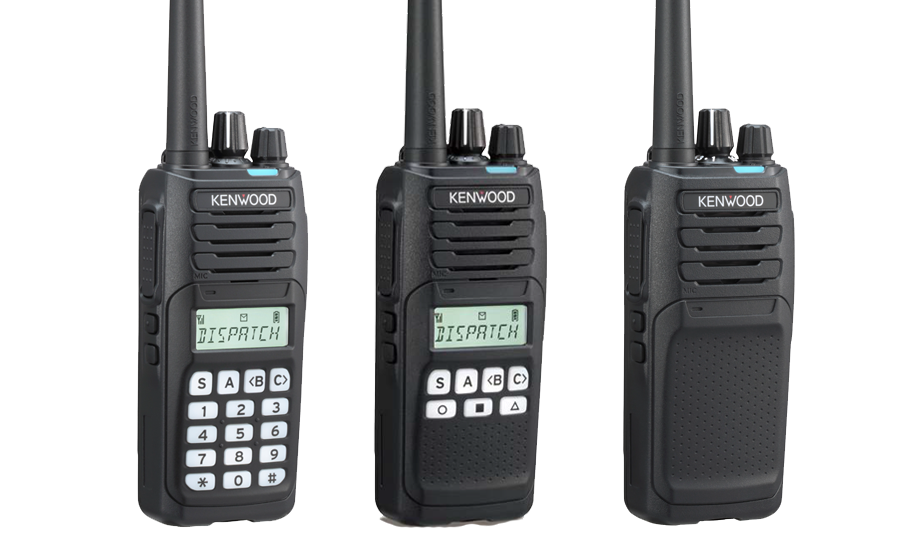

Basic - Non Keypad, Non - LCD
4-keys - 4 PF Keys, LCD
Full Keypad - 4 PF keys, 12-keys keypad, LCD

Other features include a 7-color LED indicator and the popular KENWOOD 2-pin audio accessory connector

GENERAL FEATURES

  • Wide variations, “One” platform: To meet various demands –– NXDN or DMR digital CAI models are available
  • Choose from direct & intuitive LCD with full keypad, standard keypad or basic enclosures
  • Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
  • Large 7-Color LED indicator on the top panel
  • Selective Power-on LED • Selective Call Alert LED
  • Battery Level Indication
  • Multi-status function indication
  • RF output power 5W both on VHF/UHF
  • Wide band UHF 70MHz coverage
  • Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable digital processor
  • Audio Equalizer: Flat, High, Low
  • Auto Gain Control: On, High, Low, Off
  • Noise Suppressor
  • Microphone type settings
  • Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi, Normal Scan
  • VOX & PTT –triggered Semi- VOX, Voice-operated TX
  • Emergency Function: Customizable Emergency Profile
  • Lone Worker
  • Max / Min Volume setting & Volume control
  • Voice Announcement • Remote Stun / Kill / Check
  • Front Panel Programming Mode (for Keypad model)
  • Electronic Serial Number (ESN)
  • MIL-STD-810 C/D/E/F/G
  • IP54 / 55 and IP67 (IP67 only for Asia and Oceania)
  • Intrinsically safe option (Available later)

DIGITAL – NXDN

  • FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
  • NXDN Conventional Operation
  • Site Roaming
  • Digital / Analog Mixed mode
  • Group / Individual Call
  • Status / Short data, Paging Call
  • Remote Stun / Kill, Monitor, Check & Control
  • Digital Bit Scrambler
  • Late Entry • Over-the-Air Alias (OAA)

DIGITAL – DMR

  • TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
  • DMR Tier II Conventional Operation
  • Site Roaming
  • DMR Auto Slot Select
  • Dual Slot Direct Mode
  • Digital / Analog Mixed mode
  • Call Interruption
  • Group / Individual Call
  • Status / Short data, Paging Call
  • Remote Stun / Kill, Monitor, Check & Control
  • Enhanced Encryption (ARC4)
  • Digital Bit Scrambler
  • Late Entry
  • Over-the-Air Alias (OAA)

ANALOG – FM

  • FM Conventional Operation
  • FleetSync: PTT ID, Stun/Revive, Talk back, Selcall
  • MDC1200: PTT ID, Radio Inhibit / Uninhibit, Radio check, Emergency
  • QT / DQT, DTMF, 2-tone, 5-tone
  • Built-in Programmable Voice Inversion Scrambler (per channel)
  • Built-in Compander

- Choose from direct & intuitive LCD with standard keypad or basic enclosures
- Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
- Large 7-Color LED indicator on the top panel
- Selective Power-on LED
- Selective Call Alert LED
- Battery Level Indication
- Multi-status function indication
- RF output power 5W both on VHF/UHF
- Wide band UHF 70MHz coverage
- Renowned KENWOOD audio quality: Equalizer, Auto Gain Control, Noise Suppressor
- Multiple Scan Functions
- VOX & PTT
- Emergency Function
- Lone Worker
- Max / Min Volume setting & Volume control
- Voice Announcement
- Remote Stun / Kill / Check
- Front Panel Programming Mode
- Electronic Serial Number (ESN)
- MIL-STD-810 C/D/E/F/G
- IP54 and IP55
- Intrinsically safe option

SPECIFICATIONS

General NX-1200 NX-1300
Pre-set Frequencies Type 1 136-174 MHz 450-520 MHz
Type 2 400-470 MHz
Max. Channels per Radio 260 (64 for basic model)
Number of Zones 128 (4 for basic model)
Max. Channels per Zone 250 (16 for basic model)
Channel Spacing Analog 30*1 / 25*1 / 15 / 12.5 kHz
Digital 12.5 / 6.25 kHz
Power Supply 7.5 VDC ±20 %
Battery Life DMR Analog/NXDN
KNB-45L (2000mAh) Approx. 14.5 hours Approx. 11 hours
KNB-69L (2550mAh) Approx. 19 hours Approx. 14 hours
Operating Temperature(Radio only)*2 -22°F to +140°F (-30°C to +60°C)
Frequency Stability (-30 to +60°C; +25°C Ref.) ±0.5 ppm
Antenna Impedance 50 Ω
Dimensions (W x H x D) Projections Not Included
Radio with KNB-45L/82LCM 2.13 x 4.84 x 1.32 in (54 x 123 x 33.5 mm)
Radio with KNB-69L 2.13 x 4.84 x 1.48 in (54 x 123 x 37.5 mm)
Weight Radio Only 6.17 oz (175 g)
Radio with KNB-45L/82LCM 10.41 oz (295 g)
Radio with KNB-69L 10.93 oz (310 g)
FCC ID Type 1 K44501000 K44501101 (pending)
Type 2 K44501100
IC Certification 282F-501000 282F-501100
Receiver NX-1200 NX-1300
Sensitivity NXDN® @ 6.25 kHz Digital (3% BER) 0.18 μV
NXDN® @ 12.5 kHz Digital (3% BER) 0.22 µV
DMR® @ 12.5 kHz Digital (1% BER) 0.25 µV
DMR® @ 12.5 kHz Digital (5% BER) 0.18 µV
Analog @ 12.5/25 kHz (12 dB SINAD) 0.24 µV / 0.20 µV
Selectivity Analog @ 12.5 / 25 kHz 68 dB / 74 dB
Intermodulation Distortion 70 dB
Spurious Rejection 70 dB
Audio Distortion 7%
Audio Output Power 1 W / 12 Ω (Internal Output)
Transmitter NX-1200 NX-1300
RF Power Output (High / Low) 5 W / 4 W / 1 W
Spurious Emission -70 dB
FM Hum & Noise Analog @ 12.5 / 25 kHz 40 dB / 45 dB
Audio Distortion 2%
DMR Digital Protocol ETSI TS 102 361-1, -2, -3
Emission Designator 16K0F3E, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D, 7K60FXD, 7K60F7W

MIL-STD & IP

MIL Standard MIL 810C Methods/Procedures MIL 810D Methods/Procedures MIL 810E Methods/Procedures MIL 810F Methods/Procedures MIL 810G Methods/Procedures
Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II 500.5/Procedure I, II
High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II 501.4/Procedure I, II 501.5/Procedure I, II
Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II 502.4/Procedure I, II 502.5/Procedure I, II
Temperature Shock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I 503.4/Procedure I, II 503.5/Procedure I
Solar Radiation 505.1/Procedure 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I 505.5/Procedure I
Rain* 506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II 506.4/Procedure I, III 506.5/Procedure I, III
Humidity 507.1/Procedure I, II 507.2/Procedure II, III 507.3/Procedure II, III 507.4 507.5/Procedure II
Salt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I 509.4 509.5
Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III 510.5/Procedure I
Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I 514.5/Procedure I 514.6/Procedure I
Shock 516.2/Procedure I, II, V 516.3/Procedure I, IV 516.4/Procedure I, IV 516.5/Procedure I, IV 516.6/Procedure I, IV
International Protection Standard
Dust & Water Protection* IP54/55 & IP67*
