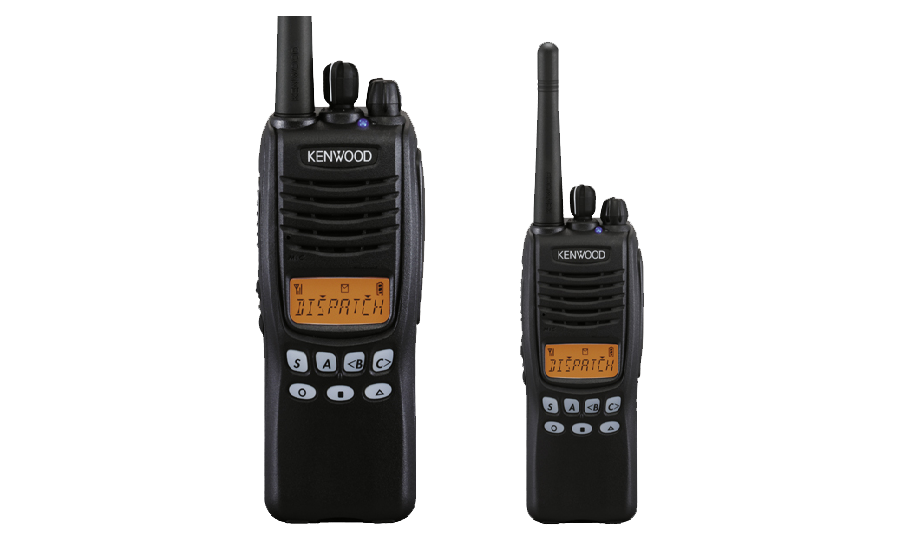

TK-3317

283.50

UHF FM Portable Radio

Quantity:

The new 3317 is thin and compact yet packed with features for intuitive operation, impressive performance, and all-weather reliability. Front and side programmable function keys allow for customized convenience, and KENWOOD’s renowned audio clarity means the message gets through loud and clear.

5Watt UHF Models
Wide Band Coverage
400-470MHz Model
450-520MHz Model
128 Channels / 128 Zones
GPS Connectivity (Combined with the optional KMC-48GPS Speaker Mic)
9 PF KEYS Type and 6PF KEYS+12KEYPAD Type
8Character, 13Segment Backlit LCD
4Color LED Indicator (Red/Orange/Green/Blue)
Programmable Voice Inversion Scrambler
QT / DQT / DTMF Signaling
FleetSync® PTT ID, SelCall
2-tone (encode/decode)
Built-in MDC-1200 Signaling
Emergency Function
IP54/55 Dust & Water Resistant
MIL-STD 810 C/D/E/F/G environmental standards, including "blowing rain"
Clear & Crisp, Enhanced Audio
Radio stun
Priority scan
Channel / Zone delete & add
Compander / VOX /Scrambler setting per channel
VOX Ready
Self-programming mode
Compatible with TK-2212/3212 batteries

Radio stun
Priority scan
Channel / Zone delete & add
Key lock
Compander / VOX /Scrambler setting per channel
VOX
T.O.T
Busy channel lockout
Operator-selectable tone
Password protection
Wireless clone
Self-programming mode
TaIk around
Compatible with TK-2212/3212 batteries

		TK-3317
GENERAL
Frequency Range		450 - 520 MHz (Type 1,3)
		400 - 470 MHz (Type 2,4)
Number of Channels / Zones		128 / 128
Channel Spacing	Wide / Narrow	25 / 12.5 kHz
Operating Voltage		7.5 V DC ±20 %
Battery Life (5-5-90 duty cycle, save off / on)	with KNB-45L (2000 mAh)	Approx. 12 hours / Approx. 18 hours
	with KNB-53N (1400 mAh)	Approx. 9 hours / Approx. 12 hours
	with KNB-29N (1500 mAh)	Approx. 10 hours / Approx. 14 hours
Operating Temperature Range		-30°C ~ +60°C
Frequency Stability		±2.5 ppm (-30°C ~ +60°C)
Antenna Impedance		50 Ω
Channel Frequency Spread		70 MHz
Dimensions (W x H x D), Projections not Included	Radio only	54 x 122 x 21 mm
	with Battery	54 x 122 x 33.7 mm
Weight (net)	Radio only	Approx. 180 g
	with KNB-45L	Approx. 300 g
	with KNB-53N	Approx. 365 g
	with KNB-29N	Approx. 380 g
FCC ID	Type 1	ALH413800
	Type 2	ALH413801
FCC Compliance		Parts 22 / 74 / 90
Australia / New Zealand		AS / NZS 4295
RECEIVER
Sensitivity (12 dB SINAD)	Wide / Narrow	0.25 μV / 0.28 μV
Selectivity	Wide / Narrow	70 dB / 60 dB
Intermodulation Distortion	Wide / Narrow	70 dB / 60 dB
Spurious Response		70 dB
Audio Distortion		Less than 5 %
Audio Output		500 mW / 8 Ω
TRANSMITTER
RF Output Power (High / Low)		5 W / 1 W
Spurious Response		70 dB
FM Hum & Noise	Wide / Narrow	45 dB / 40 dB
Audio Distortion		Less than 5 %
Modulation	Wide / Narrow	16K0F3E / 11K0F3E

TK-2317M_TK-3317M_Brochure.pdf
